TECEflex Female Connector Dimension 20 x Rp 3/4″, Silicon Bronze
SKU:
705104
Kategoria:
Santechnika inżynieryjna

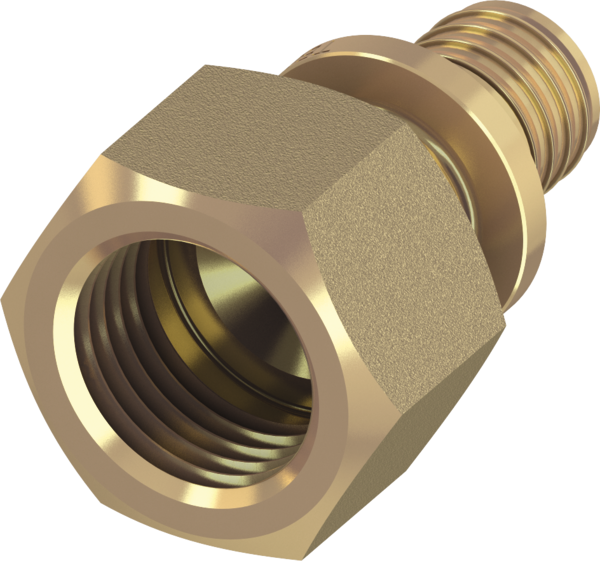

Female connector made of silicon bronze for O-ring free pressure sleeve connection of TECEflex pipes with threaded fittings or fittings with a thread to EN 10226. Fitting with optimised flow resistance coefficient (Zeta value). Suitable for all potable water qualities (without TECEflex pressure sleeves). High-quality silicon bronze construction ensures excellent corrosion resistance and long service life in demanding installations.
Technical Specifications / Specyfikacja techniczna
| Article Number | 705104 |
| GTIN | 4027255032965 |

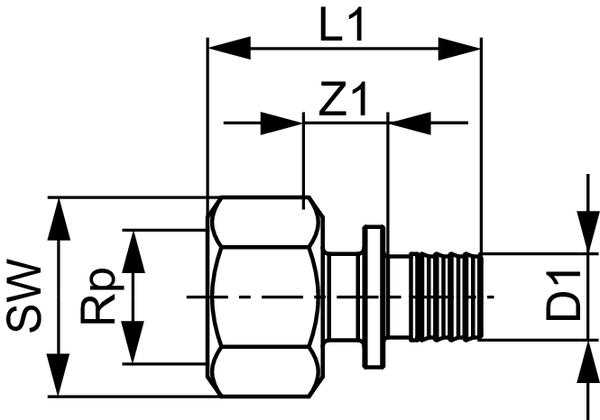

| Z1 | 13 mm |
| L1 | 46 mm |
| SW (Wrench size) | 31 mm |
| Dimension | 20 |
| Thread | Rp 3/4" |
| Material | Silicon bronze |
| Commodity Group | 700 |
| Product Group | 1007000030 |
