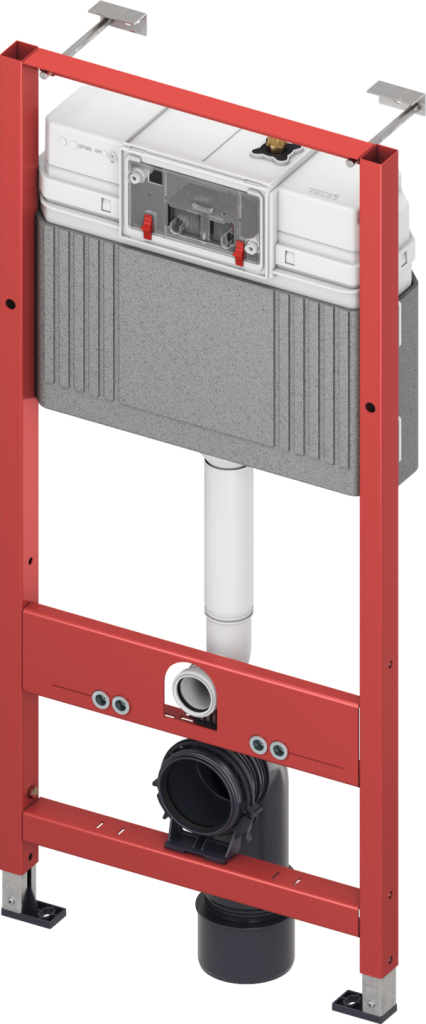

TECEbase Toilet Module with Base Cistern, Installation Height 1120 mm
SKU:
9400407
Kategoria:
Instalacje
Professional toilet module including "easy fit" flush plate installation. Suitable for single block assembly, as pre-wall module in front of solid walls, and for incorporation into metal/wooden stud walls. Features Base cistern for front actuation with safety tank made of impact-resistant plastic (tested to EN 14055). Fully pre-assembled cistern with R 1/2" outer thread connection at top, compatible with quick adapters. Includes 3-way stop valve with shut-off valve with flush function and installed filling valve. 10-litre tank volume with 6-litre pre-set standard flush, adjustable to 4.5/7.5/9 litres. 3-litre partial flush for dual-flush system. Self-supporting powder-coated module frame with M12 retaining bolts. Includes mounting set for solid walls. Toilet drain bend DN 90 with joint adapter DN 90/100 (PP), suitable for horizontal installation. Low-noise hydraulic filling valve (DIN 4109, group 1). Insulated against condensation water.
Technical Specifications / Specyfikacja techniczna
| Article Number | 9400407 |
| GTIN | 4027255086241 |

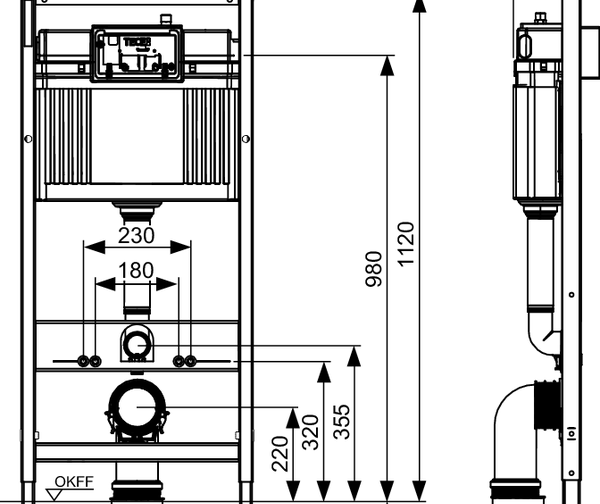

| Installation height | 1120 mm |
| Tank volume | 10 litres |
| Standard flush volume | 6 litres (adjustable 4.5/7.5/9L) |
| Partial flush volume | 3 litres |
| Drain bend | DN 90 |
| Joint adapter | DN 90/100 (PP) |
| Connection | R 1/2" outer thread |
| Valve type | 3-way stop valve |
| Standard | EN 14055, DIN 4109 |
| Features | Easy fit installation, 3-way stop valve, low-noise filling, condensation insulated |
| Commodity Group | 910 |
| Product Group | 2009100010 |
